Fast Long-Range Communication: Semtech LR2021 Enables High-Speed Image Transfer Without Compromise

For many years, wireless communication technology has faced a trade-off between achieving long transmission ranges and supporting high data rates. Semtech’s LR2021, the first radio in the LoRa Plus™ line, incorporates 4th Generation LoRa® IP with an innovative Fast Long-Range Communication (FLRC) modulation, enabling data rates of up to 2.6 Mbps on both sub-GHz and 2.4 GHz frequency bands. This advanced modulation supports diverse applications, including reliable image transfer over extensive distances with strong penetration through materials, all while maintaining the low power requirements necessary for battery-powered devices.

 The Range-Speed Trade-off in Wireless Communication

The Technology Behind FLRC

Fast Long-Range Communication (FLRC), featured in the LR2021, offers an enhanced link budget and significantly higher data throughput. By utilizing coherent Minimum-Shift Keying (MSK) modulation, FLRC achieves long-range transmission with notable spectral and energy efficiency. Unlike LoRa, FLRC does not employ spread spectrum methods; consequently, the raw bit rate is equivalent to the channel bandwidth prior to the application of Forward Error Correction (FEC). This direct mapping enables FLRC to deliver higher throughput while maintaining the extended range that long-range applications require.

Key Advantages of FLRC

• High Data Throughput: Supporting data rates up to 2.6 Mbps, FLRC enables applications requiring significant volumes of data transfer, including images, audio, extensive data logging, Firmware Updates Over-The-Air (FUOTA), and Edge AI model training.
• Extended Range: FLRC offers 8–10 dB improved sensitivity compared to Bluetooth Low Energy (BLE), effectively doubling operational range at comparable bit rates. While BLE typically reaches 100 meters, FLRC extends this to 600+ meters in outdoor environments. Sub-GHz operation delivers superior material penetration, ideal for deep indoor deployments.
• Low Power Consumption: Optimized for battery-powered platforms necessitating prolonged runtime. Typical security camera deployments achieve 2+ years of battery life with periodic image transmission.

Demonstration Architecture

Hardware

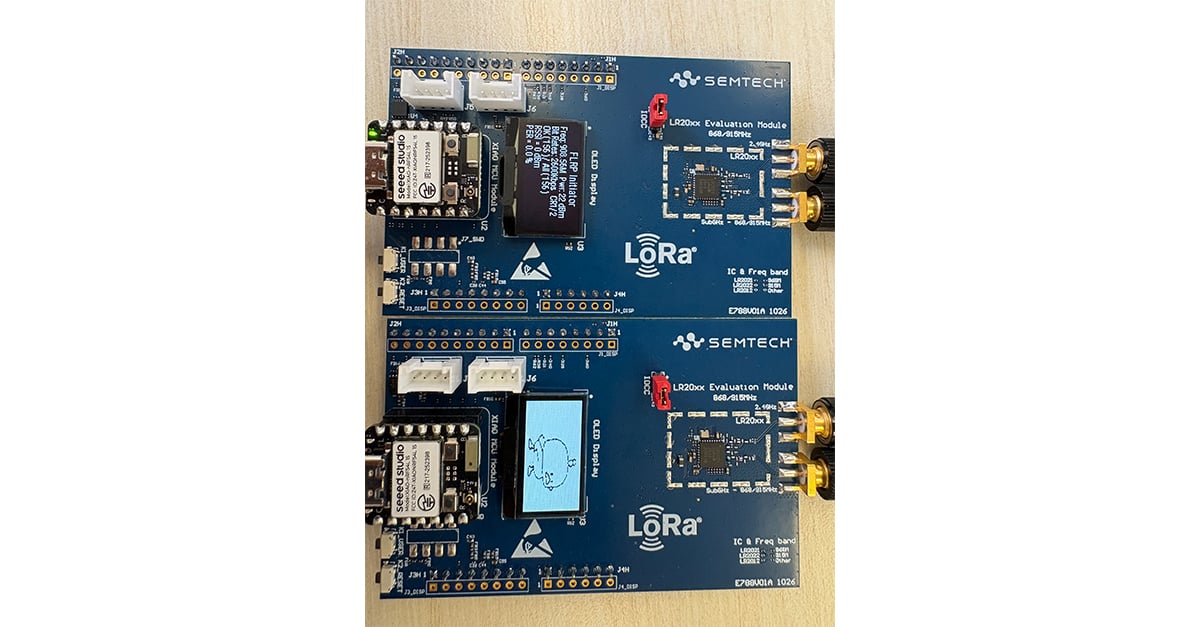

The LR2021 Evaluation Kit P/N: LR2021EVK1X, comprises two (2) LR2021 evaluation boards, each featuring the LR2021 IC, MCU module, display screen and antennas:

• Primary device (sender): Configured as an image transmitter

• Secondary device (receiver): Configured as an image receiver

Software

Demo code encompasses image file management (i.e. fragmentation, defragmentation), transmission coordination, and error handling.

• Source code is available at: https://github.com/Lora-net/swdm031_img_xfer
• Reference Example: usp_zephyr/samples/usp/rac/flrc_burst

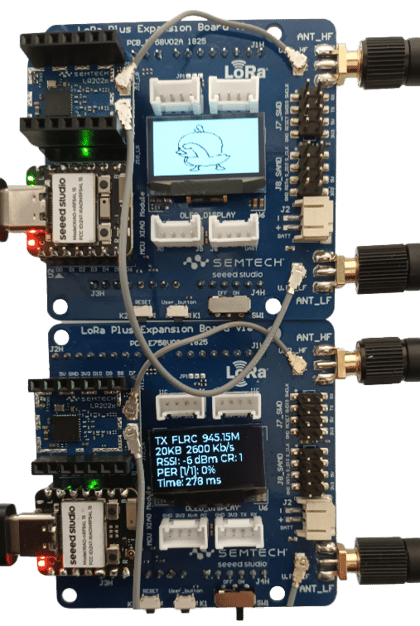

Image: LR2021 evaluation kit demonstrates FLRC-enabled image transfer capabilities.

System Demonstration

• Point-to-Point Image Transfer: The demonstration utilizes a two-device configuration wherein one LR2021 EVB functions as the sender and the other as the receiver, facilitating practical file transfer scenarios commonly encountered in security, monitoring, and emergency communications.

• High-Speed Transmission: Enables 20 kB image transfers leveraging FLRC bandwidth settings from 260 kbps up to 2.6 Mbps.

• Frequency Optimization: Operates on 915 MHz and 868 MHz channels and 470 MHz, depending on geographic region, for deep indoor coverage and resilient connectivity. Support for 2.4 GHz ISM bands ensures global accessibility.

• Reliable Delivery: Incorporates packet acknowledgment and forward error correction mechanisms to ensure dependable image transfer.

• Error Monitoring: Packet Error Rate (PER) tracking delivers insight into link quality.

• Live Visualization:  Transmitter displays real-time image rendering, progress indicators, and completion confirmation. .

• Channel Selection: Developers can select available channels with minimal interference, further enhancing transmission reliability.

Note: In order to do field test and verify project, the user can press transmitter’s user button to switch the raw bit rate for testing. The change order is shown in the following figure.

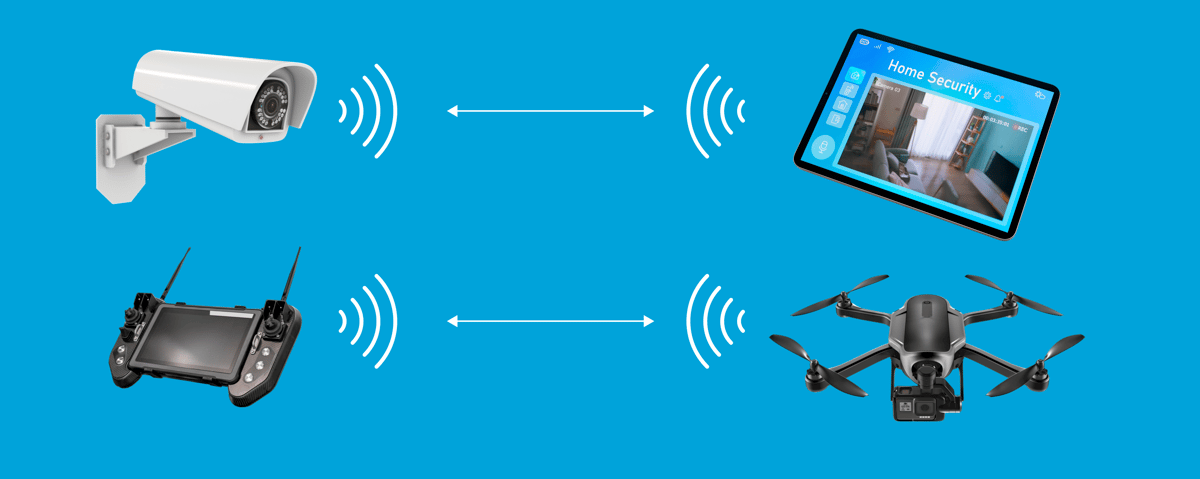

Example Applications & Value Proposition

Building Security

Wireless battery-powered security cameras benefit from FLRC's ability to transmit images throughout building interiors and surrounding areas without extensive infrastructure investments and gateway densification.

Implementation Benefits:

• Elimination of wiring and labor-intensive installation costs

• Rapid deployment within existing structures

• Flexible camera placement based on security requirements

• Scalable network connectivity for multiple devices

Child Monitoring Solutions

FLRC technology supports child monitoring systems that surpass traditional baby monitors and Wi-Fi cameras, enabling image transmission from various locations in and around the home.

Advantages:

• Extended monitoring range

• Battery-powered operation with long service life

• Reliable connections independent of Wi-Fi networks

Drone Applications

For remote drone operations requiring real-time image transfer, FLRC sustains reliable transmission over extended distances while maintaining control connectivity.

Capabilities Include:

• Search and rescue missions

• Agricultural field assessments

• Infrastructure inspection

• Emergency response coordination


FLRC Compared to Other Wireless Technologies

Conclusion: Advancing Wireless Communication

Semtech's LR2021 employing FLRC technology represents a significant advancement in wireless communication, resolving historical compromises between range, speed, and energy efficiency. Demonstrated through real-world image transfer scenarios, LR2021 enables novel implementations in security, industrial, and mission-critical applications.

From facility monitoring to child safety and aerial drone imaging, FLRC provides fast, long-range, and low-power connectivity within a unified solution. As IoT demands evolve toward richer multimedia content and smarter systems, LR2021 sets the stage for next-generation connected devices across diverse industries.

Get Started with FLRC Technology

• Explore Technical Resources: Download the LR2021 datasheet and application notes from “Documents” section

• Order the Evaluation Kit: Experience FLRC image transfer capabilities firsthand

• Connect with Our Team: Discuss your specific application requirements

• Stay Informed: Subscribe to the LoRa Monthly Newsletter for the latest advances in LoRa technology

Explore Semtech's comprehensive portfolio of LoRa products, case studies, and additional resources at our website.
